I’ve always enjoyed short, snappy little projects that deliver a quick dose of dopamine, and I’m a big fan of CodePen as a way to exercise that ‘tinker and play’ attitude.

One of my earlier and more involved pens was the result of a thought: “What if 8-bit but open world?”. A great candidate seemed to be Jet Set Willy, and luckily there’s an absolutely excellent disassembly of the game available. It was fascinating to dive into the data and see how efficiently everything was packed in there while remaining pretty readable. Before the days of widespread fast and convenient compression, programmers just squeezed things down to the last bit.

I ended up writing various routines to process things in a way that looked true to the original, including figuring out how to parse the attributes (the way the Speccy encoded colour and more into 8×8 pixel blocks with a single byte) and generate all of the graphics, rooms and movement patterns.

It’s not complete unfortunately – the arrows and the rope swinging routine got the better of me at the time, but I still think it’s still a really cool little bit of nostalgia, and decently structured (for the time at least; this is pre-ES6 JavaScript).

Anyway, here it is in all its glory. Enjoy!

I quite like the big comment attempting to explain all the bitwise stuff:

    // The attribute format is a single byte containing 2x 1-bit values for flash and bright, then 2x 3-bit values for paper and ink
    // So the value 221 (binary 11011101) broken down becomes flash 1 (1), bright 1 (1), paper 011 (3) and ink 101 (5)
    // To extract these, we perform up to two operations:
    // 1. We perform a bitwise AND on the value with a bitmask of corresponding length for how many bits you want to extract - if
    // we're looking for a boolean here (using a single bit in the mask), we can just coerce it with the !! operator as the outcome
    // will be zero for false and non-zero for true
    // 2. We perform a bitwise shift to the right so that the bits we're interested in are at far right side
    //
    // Examples:
    // To get the bright value (1 - true) from 221 (11011101):
    // 221 & 64 = 64  (binary: 11001101 AND 01000000 becomes 01000000)
    // !!64 = true    (binary: 01000000 is non-zero, so it becomes true)
    //
    // To get the paper value (3) from 221 (11011101):
    // 221 & 56 = 24  (binary: 11011101 AND 00111000 becomes 00011000)
    // 24 >> 3  = 3   (binary: 00011000 shifted right 3 times becomes 00000011)
    //
    // Quite a nice explanation of what you can do with bitwise operators can be found here:
    // https://developer.mozilla.org/en/docs/Web/JavaScript/Reference/Operators/Bitwise_Operators
    //
    // P.S. I revised this whole intro in September 2020 as I realised I didn't understand bitwise operations as well as I should
    // have. Littered throughout this code are examples of the old inefficient method of "shift then and", as opposed to the
    // 'correct' way of doing things (especially for single bits). No doubt there's more on this for me to learn but it's good to
    // be honest.

I’ll write up a few more of these for other pens I’ve done if there’s any interest. Let me know in the comments or via one of my socials if you’d like to know more about any of these, or indeed anything else I’ve done!

• Bluesky
• X
• CodePen

Recently, as part of my continued work on Archaos (yes, I’m still working on it, never fear!) I put together an isometric (well, axonometric to be a little less precise) renderer for Richard Davey‘s wonderful Phaser HTML5 game development framework. It’s got a nice adjustable axonometric projection helper, a simple and fast physics engine based on Phaser’s own bread-and-butter Arcade Physics, and it’s probably close to production ready. I deliberately kept the system simple, and the API as close to the existing Phaser API as possible to allow for quick adoption, and it plugs in pretty much seamlessly.

You can view the microsite I put together for it here, browse the repo (and maybe even if you feel like it, or spot some of my horrendous and inevitable broken maths, contribute) on GitHub here, view the API docs here, and I’ll also be posting some simple examples to demonstrate the various features shortly. Enjoy!

For the last few weeks I’ve been adding in two very important systems to Archaos – namely real-time communications via TCP, and the use of a database back-end for the server. The first makes games much more responsive, and allows the server to inform connected players of actions as and when they happen. It will also pave the way for an exciting addition I have planned, which will (hopefully) combat the inevitable pacing problems that arise from typical turn-based games. If you want to know more about what I’m getting at, give this excellent article a read.

The database server, client and game server respectively.

The second addition is a solid database-driven server. Until now, as a temporary solution I’d been storing all of the game data in a single file. When the server opened, it read all of the users and games from this file, and then stored all of the data in memory. If the data changed, the server would periodically save the entire file back to disk. The server would only write the data to disk if it had changed, and only once every so often – this kept writes to a minimum. The solution was fine for small scale testing, but it would not have scaled up well – quickly consuming all of the memory in the server machine, as well as being difficult to manage.

Now all of the data is stored on a mongoDB server in essentially the same format. The game server is then only responsible for the manipulation of the data, and not the storage and management of it. The game server itself is relatively simple in its approach; when a user sends an action, it loads the game, determines if the action can be performed, and if so what the outcomes are. It then saves the changed game back to the database and sends the actions to all of the connected players (which it does via TCP). The game server never keeps games, users, units or anything else in memory for longer than it needs to check or manipulate it. There are no special objects or instances; every function works only on the raw data. I may introduce some caching to reduce database operations later but at this stage the setup is fairly efficient.

So, I have what I feel is a solid base now, I’ve got some of the actions in and working (such as creating, joining and leaving games, unit movement and engagement) and now it’s just a case of writing the client-side stuff for the remaining actions, adding in the spell system and then getting it out there for public beta testing!

Look out soon for another post on the spell system and how I intend to tweak it to provide a more balanced start to each game.

Over the last few days I’ve been planning, and then implementing the RESTful communication part of the server, and this has been built on top of Express‘s fantastic routing. The next few days will see me implementing the rest of the current game logic on top of this routing, using the HTTP GET and POST methods and simple URI schemes in order to provide any client with a stateless, efficient way of communicating with the server.

For example, a client could request ‘/games‘ from the server and receive a list of games, each with its vital stats (players, board size etc). A client can then request to see more on an individual game by requesting ‘/games/game01‘ for instance. A client can then finally choose to get the status of the game from a particular point via ‘/games/game01/update/20‘ which will return all the actions from action 20 and above, or alternatively the client can request ‘/games/game01/update/1325635230240‘ which retrieves the actions from after that timestamp. The server determines whether a request called for a timestamp or an action ID easily because of the huge numerical difference between the likely amount of actions in a game and the value of a typical timestamp.

I have also decided (for now at least) to focus on JSON as the primary format for data from the server – I had intended to explore other formats such as XML, BSON and MessagePack but keeping things in JSON seems to be efficient enough at the moment.

Once the server is returning everything correctly using this new URI structure, I’ll shift my focus to the client for a while, and get some of the boring stuff such as creating/editing users and access control sorted out. I’m being purposely very careful about having something solid and playable before I go and start with the spell phase, and all of the delightful things that brings with it!

I’ve been getting into a routine of testing, re-writing and bolstering everything over the past week or two. This is in direct contrast to my usual routine of writing massive blocks of code without testing, then firing it up and watching it fail in multiple places, then lose the will to continue (something perhaps familiar to many developers) – so this time making sure every routine is working efficiently and giving me verbose feedback in every possible situation has been high on my priority list.

Tonight I implemented error codes and matching error messages – boring I know, but it’s just one of many steps I’ve taken to make sure I know when things aren’t working, and to make the client/server architecture as bullet-proof as possible. All this work at the front-end is to make sure that when the server’s launched, it’ll have a really easy to use API. One of my major goals after all is to make this an ‘open’ Chaos server, and invite front-end developers to produce their own ports for various platforms – indeed it should be very possible to write a front-end for a Spectrum using the same graphics, sounds and so on!

One of the other things I’ve implemented is a step-by-step list of actions for each game. The stored game data contains a current snapshot of the game, active players, unit positions etc – but it also now contains a blow-by-blow account of the entire game from when it’s created, as players join and then start playing. Clients will then be able to store a timestamp (returned from the server after each action they perform) and then put out polled or long-polled requests for updates from the server, quoting that timestamp. Once the server processes new actions, it can return those actions to the requesting client in the correct order (so for instance, if a player moves their wizard in the first turn, the server automatically advances to the next player as they no longer have any units to move – this logs two actions, a unit movement and then a “next user’s turn” action). Clients may choose to return actions from any timestamp, so as long as the client knows when it last got an update, it can always stay in sync. The client may also optionally request all the actions, in effect providing a way of replaying an entire game, or it can just request a ‘refresh’, which sends the client a snapshot of the game as it stands, with all the data it needs to resume the game from scratch.

Here’s an example of a typical update:

{

    "response": {
        "success": [
            {
                "id": 8,
                "action": {
                    "turn": 3,
                    "currentPlayer": 0
                },
                "time": 1324168638420
            },
            {
                "id": 9,
                "action": {
                    "moved": {
                        "id": "wizard_0",
                        "from": {
                            "x": 3,
                            "y": 5
                        },
                        "to": {
                            "x": 4,
                            "y": 5
                        }
                    }
                },
                "time": 1324168655828
            },
            {
                "id": 10,
                "action": {
                    "turn": 3,
                    "currentPlayer": 1
                },
                "time": 1324168655828
            }
        ]
    },
    "currentTime": 1324168722155

}

So far, I have a very solid base – board sizes and player counts are limitless and the server will automatically position wizards in a ‘Chaos-like’ arrangement around the board, regardless of size, shape or number of wizards, or at least up to 8 wizards, after that I need to write a routine to automatically space them – probably via some kind of circular distribution. Although spell casting isn’t yet implemented, units are and can be created by manually editing the game data – so I’ve had a wizard and his hydra happily moving around the board to my infinite satisfaction.

Next to be done is the combat routines – which will lead to the invariably sticky (though hopefully MUCH more manageable) death routine, which is always a bit of a pain with Chaos. Remember, some units die, some units disappear, some units (wizards) disappear and trigger a player defeated routine, blobs engulf, magic fire destroys outright and leaves no corpse, wizards on mounts if attacked by units lose their mount, but if overrun by magic fire disappear and trigger a player defeated routine and so on and on.

Plainly remaking Chaos is not as simple as it seems.

First of all, apologies for not updating in yonks – I could give you the usual programmer excuses about real life, work and so on but you’ve heard them all before, so I’ll dive right in to what I’ve been doing:

Archaos is very, very slowly moving along – we’re talking geologically slow here, but nonetheless there’s still a roadmap and there’s still progress on it. My aim now is to have a release before my 30th birthday (next year) and I’ll be damned if I don’t make it!

I’ve been experimenting with presentation and so on, and came up with a little thing tonight which I thought was quite cute.  I’m really feeling the love for CSS3 and HTML5 now.

WordPress has become my new powerhouse tool at work, and I’ve been churning out sites left, right and centre in this wonderful blog engine turned CMS (as of 3.1 especially so) – check out some of the following:

• www.lovegeobar.com
• www.communityfoundation.org.uk
• www.redboxdesign.com

The last is our most recent project, and is very much not a site you’d expect to be WordPress powered – such is its flexibility!

I don’t update on Twitter much anymore, as it’s become a bit of a joke now with all of the celebrities and ridiculous trends; it pains me to say it but I think Twitter is more about Justin Bieber now than anything sensible. Alas, I spend most of my social networking time now on Facebook.

Finally, I’ve booked a flight to Arizona in September for a two week photography road trip with two of my good friends – should be awesome!

Anyway, hopefully that’s got everyone up to speed on what I’m doing – keep your eyes peeled in the coming months for updates on Archaos and other projects.

The Archaos server now validates, processes and outputs a full turn of human interactions. This is a pretty major milestone in the development process, and I’m very happy with the results so far:

{
  "turn" : 1,
  "phase" : "move",
  "interaction" : "sequence",
  "finished" : true,
  "actions" : [
    {
      "type" : "move",
      "player" : "lewster32",
      "time" : 1263682234,
      "data" : {
        "piece" : "p0",
        "path" : [
          {
            "x" : 1,
            "y" : 7
          }
        ]
      }
    },
    {
      "type" : "end_turn",
      "player" : "lewster32",
      "time" : 1263682234
    },
    {
      "type" : "move",
      "player" : "bobster16",
      "time" : 1263682234,
      "data" : {
        "piece" : "p1",
        "path" : [
          {
            "x" : 13,
            "y" : 5
          }
        ]
      }
    },
    {
      "type" : "move",
      "player" : "bobster16",
      "time" : 1263682234,
      "data" : {
        "piece" : "p3",
        "path" : {
          "x" : 11,
          "y" : 4
        },
        "flying" : true
      }
    },
    {
      "type" : "end_turn",
      "player" : "bobster16",
      "time" : 1263682234
    }
  ]
}

I’d like to mention the huge amount of support, encouragement and fantastic resources provided by certain people of late. @andy_herbert has been a fantastic vocal advocate and provider of much inspiration and technical knowhow (he’s an utterly brilliant multi-talented programmer in his own right) and I owe an awful lot to his ‘cheery’ tone on Twitter! 😉

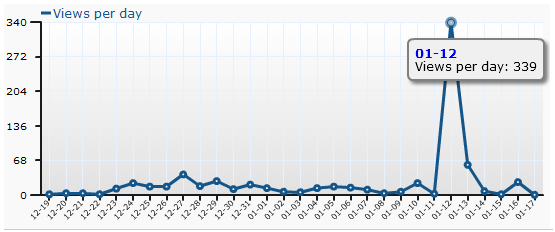

Secondly, I’d like to shout out a big hello to the Slashdot horde, who accosted the site a few days back. I got a hell of a lot of visits from these guys and I’m sure it’s helped spread the word about Archaos (even if that wasn’t actually my intention) and more importantly the Chaos scene in general!

Finally, a big thanks to @Zolyx for mentioning the project on his blog along with the other fantastic Chaos projects out there – muchos appreciated!

As a little bit of an aside to ‘the main project’ , I’ve been getting more familiar with node.js by forking a nice simple IRC bot project on github. At the moment I’ve just got it logging in an mIRC compatible format, and added some missing features to the logging, but in the future I’m going to extend it into a proper modular IRC bot.
